Develop an extension for the Microsoft Edge sidebar

As a Microsoft Edge extension developer, you can make your new or existing Microsoft Edge extension appear in the sidebar. Any extension can use the sidebar in addition to its other UI.

Detailed contents:

Introduction

Use the chrome.sidePanel API to host content in the sidebar of Microsoft Edge alongside the main content of a webpage.

As a Microsoft Edge extension developer, you can make your new or existing Microsoft Edge extension appear in the sidebar. Any extension can use the sidebar in addition to its other UI.

The sidebar for a Microsoft Edge extension

By using the Side Panel API, you can enhance the browsing experience by enabling users to view additional information alongside the main content of a webpage.

The sidebar is a persistent pane that's located on the side of Microsoft Edge. The sidebar pane coexists with the primary content of the browser. The sidebar reduces the need to constantly switch between tabs, resulting in a more productive browsing experience.

An extension can optionally use the Side Panel API to show a custom UI in the Microsoft Edge sidebar. Additionally, the extension can continue appearing in the Microsoft Edge toolbar along with a UI such as popups, and can inject scripts.

Terminology

Term Definition
the Side Panel API Name of the feature that you can use in your Microsoft Edge extensions. The Chrome UI uses the term side panel.
sidePanel or side_panel Name of the API and permission to enable any extension as a sidebar extension.
sidebar extension A Microsoft Edge extension that has a UI in the sidebar.

Concepts and usage

The Side Panel API allows an extension to display its own UI in the Microsoft Edge sidebar, enabling a persistent experience that complements the user's browsing journey.

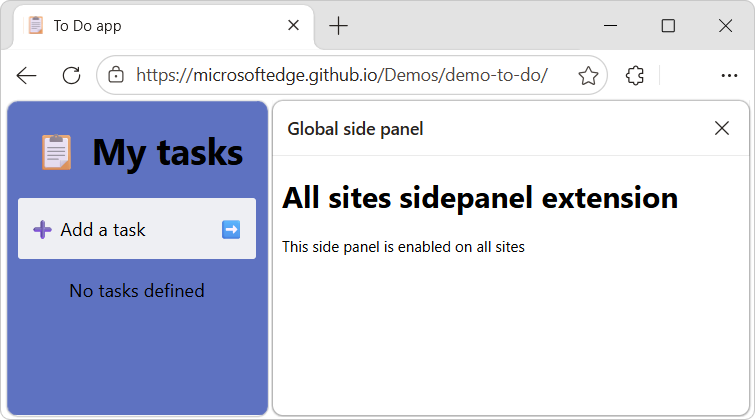

Edge browser sidebar UI

As with other extension resources, the HTML page that's displayed in the sidebar runs in a trusted extension context on the extension's origin (extension://<id>). The sidebar has the same API access as other trusted extension contexts.

All the existing extensions APIs are available for sidebar extensions, so you can leverage all current capabilities of the extensibility framework in your sidebar-enabled extension.

Some features of the sidebar include:

  • The sidebar remains open while navigating between tabs.

    • Known issue: The sidebar is not automatically displayed again when the user switches to a tab in which the sidebar was previously open (Issue #142).

  • An extension in the sidebar can be made available for specific websites.

  • An extension in the sidebar has access to all of the Supported APIs for Microsoft Edge extensions.

  • In Microsoft Edge settings, the user can specify several sidebar settings.

Add the sidePanel permission in the manifest file

To use the Side Panel API, add the "sidePanel" permission in the extension's manifest file (manifest.json):

{
  ...
  "name": "My sidebar extension",
  ...
  "side_panel": {
    "default_path": "sidepanel.html"
  },
  "permissions": [
    "sidePanel"
  ]
   ...
}

Every extension for Microsoft Edge has a JSON-formatted manifest file, named manifest.json. The manifest file is the blueprint of the extension.

A complete manifest file is included in each sample; see Extension samples, below.

See also:

Use cases for the Side Panel API

The following sections demonstrate some common use cases for the Side Panel API.

For complete extension examples, see Extension samples, below.

Display the same sidebar on every site

A sidebar can be set as the default, to show the same extension throughout all the open browser tabs. Default values persist across browser sessions.

In manifest.json, define the "default_path" key, such as "sidepanel.html":

{
  "name": "My sidebar extension",
  ...
  "side_panel": {
    "default_path": "sidepanel.html"
  }
  ...
}

The file that you specified as the default, such as sidepanel.html, appears in all the open browser tabs:

<!DOCTYPE html>
<html>
  <head>
    <title>Global side panel</title>
  </head>
  <body>
    <h1>All sites sidepanel extension</h1>
    <p>This side panel is enabled on all sites</p>
  </body>
</html>

See also:

Enable a sidebar for a specific site only

An extension can use sidepanel.setOptions() to enable a sidebar on a specific tab. This can be a particular website, so the extension opens in the sidebar when the user goes to this website.

This example uses chrome.tabs.onUpdated() to listen for any updates made to the tab. It checks whether the URL is www.bing.com and if so, enables the sidebar. Otherwise, it disables the sidebar.

service-worker.js:

const BING_ORIGIN = 'https://www.bing.com';

chrome.tabs.onUpdated.addListener(async (tabId, info, tab) => {
  if (!tab.url) return;
  const url = new URL(tab.url);
  // Enables the sidebar when at bing.com
  if (url.origin === BING_ORIGIN) {
    await chrome.sidePanel.setOptions({
      tabId,
      path: 'sidepanel.html',
      enabled: true
    });
  } else {
    // Disables the sidebar when at other sites
    await chrome.sidePanel.setOptions({
      tabId,
      enabled: false
    });
  }
});

In addListener(), we do the following:

  1. Test url.origin to see if it's the desired tab.
  2. In sidePanel.setOptions(), set enabled to true or false.

When a user switches to a tab or site for which the sidebar is not enabled, the sidebar is hidden.

Known issue: The sidebar is not automatically displayed again when the user switches to a tab in which the sidebar was previously open (Issue #142).

For a complete example, see Site-specific side panel example.

Enable the extension's shortcut icon to open the sidebar

To allow users to open the sidebar by clicking the action toolbar icon, use sidePanel.setPanelBehavior(). First, declare the "action" key in manifest.json:

{
  "name": "My sidebar extension",
  ...
   "action": {
    "default_title": "Click to open sidebar"
  },
  ...
}

Then, add the following code to the service-worker.js code listing that's in Enable a sidebar for a specific site only, above:

// Allow users to open the sidebar by clicking the action toolbar icon
chrome.sidePanel
  .setPanelBehavior({ openPanelOnActionClick: true })
  .catch((error) => console.error(error));

Opening the sidebar upon user interaction

sidePanel.open() allows extensions to open the sidebar through a user gesture, such as clicking the action icon, or through any user interaction on an extension page or content script, such as clicking a button.

The following code shows how to open a global sidebar on the current window when the user clicks on a context menu. When using sidePanel.open(), choose the context in which the sidebar should open:

  • Use windowId to open a global sidebar, as shown in the following example.
  • Or, set the tabId to open the sidebar only on a specific tab.
// service-worker.js:
chrome.runtime.onInstalled.addListener(() => {
  chrome.contextMenus.create({
    id: 'openSidePanel',
    title: 'Open sidebar',
    contexts: ['all']
  });
});

chrome.contextMenus.onClicked.addListener((info, tab) => {
  if (info.menuItemId === 'openSidePanel') {
    // Open the sidebar in all the tabs of the current window.
    chrome.sidePanel.open({ windowId: tab.windowId });
  }
});

For a complete demo, see Opening the side panel through a user interaction.

Switch to a different sidebar

An extension can use sidepanel.getOptions() to retrieve the current sidebar, and then enable a different sidebar for a specific tab.

This example sets a sidebar containing a welcome message on runtime.onInstalled(). When the user navigates to a different tab, the sidebar is replaced with the browser-level sidebar.

// service-worker.js:
const welcomePage = 'sidebar/welcome-sb.html';
const mainPage = 'sidebar/main-sb.html';

chrome.runtime.onInstalled.addListener(() => {
  chrome.sidePanel.setOptions({ path: welcomePage });
});

chrome.tabs.onActivated.addListener(async ({ tabId }) => {
  const { path } = await chrome.sidePanel.getOptions({ tabId });
  if (path === welcomePage) {
    chrome.sidePanel.setOptions({ path: mainPage });
  }
});

For the full code, see Multiple side panels example.

Develop an extension for the Microsoft Edge sidebar have these user experience (UX) features.

Opening the extension in the sidebar

To allow users to open the sidebar, do either of the following:

Details are below.

By clicking an icon

Users can click the Open in sidebar icon (Open in sidebar icon), which is displayed next to the extension's name in the Extensions hub:

Sidebar dialog

Or, users can click the extension's custom icon in the toolbar, if it's enabled. This user experience requires that the extension has enabled the shortcut icon to open the sidebar, as described in Enable the extension's shortcut icon to open the sidebar, above. In this example, the extension's custom icon is a circle (Extension's custom icon):

Clicking the extension's icon in the toolbar

See also:

By right-clicking the extension's icon

Users can right-click the extension's icon in the toolbar, and then select Open in sidebar or Close sidebar:

Right-clicking the shortcut on the toolbar to open the extension

Right-clicking the shortcut on the toolbar to close the extension

The extension's icon appears in the toolbar if the user has clicked the Show in toolbar (Show in toolbar icon) icon next to the extension's name in the Extensions hub.

See also:

By pressing a keyboard shortcut

Users can press a keyboard shortcut, if the action command is enabled and the action icon is enabled to open the sidebar.

If the openPanelOnActionClick() property of the PanelBehavior type is set to true, the user can open the sidebar by using a keyboard shortcut. To enable this, you specify an action command in the manifest.

See also:

Open through a gesture

The sidebar can also be opened through the following interactions:

Extension samples

For more Side Panel API extensions demos, explore any of the following extensions:

See also:

Types and methods

See Types and Methods in the chrome.sidePanel API reference page at developer.chrome.com.

See also

Note

Portions of this page are modifications based on work created and shared by Google and used according to terms described in the Creative Commons Attribution 4.0 International License. The original page is found here.

Creative Commons License This work is licensed under a Creative Commons Attribution 4.0 International License.
